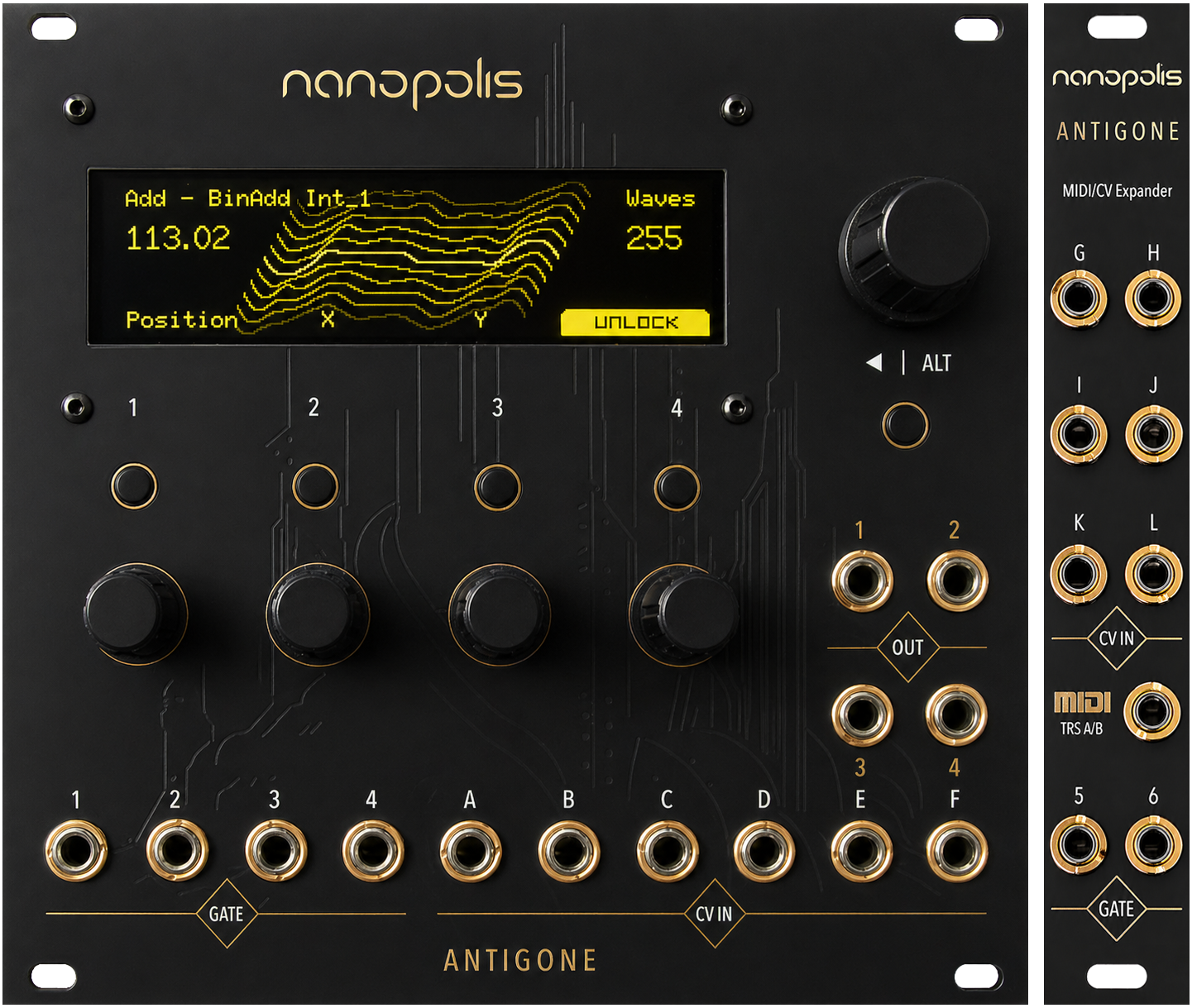

A N T I G O N E
Hardware
- 4 individual 16-bit audio outputs (routable as 4 mono, or 2 stereo, or 1 stereo + 2 mono), AC-coupled, high end DAC & op-amp
- 6 CV inputs (-5V / +5V , assignable to almost any parameters)
- 4 Gate/Trig/Clock inputs
- OLED Screen 256x64 pixels (4-bit greyscale - 16 levels), color : yellow or blue
- MicroSD slot on the rear of the module (tested up to 128gb)
- 16mb of RAM to load samples & wavetables
- 4 smooth endless pots & 1 digital (quadrature) clickable encoder
- Microcontroller board : removable teensy 4.1
- Width : 26hp
- Depth : 28mm from the back of the faceplate
Software : Common
⚠️ All specifications are subject to change, the software evolve every day !
- Audio engine 32bits 48khz
- 4 individual voices (link capability to work as monophonic, polyphonic, paraphonic), each voice are composed of one machine slot (an audio generator like wavetable, sample player ect...) + 4 modulations slots (adsr, lfo, s&h ect...)
- When the voices are linked (for poly mode per example) voice 1 act as master, all other voices are replica of the voice 1, but you can offset all params on other voices !
- Unlimited presets for projects and voices (saved on the SD card, limited by the SDCard capacity)
- 1 note processor slot per project (basic, chords, arp...)
- 4 global modulations slots per project
- Mixer with routing & panning for the 4 voices
- External clock / reset sync
- All parameters are assignable to internal and/or external modulations (2 modulations per param)
